Our crane end carriages, which we have developed in various designs, offer flexibility and high operating reliability. These compact, modular rail-mounted travel units can be connected direct to crane girders and load-bearing structures. Our end carriages consist of a torsion ally rigid box section and complete travel units with geared motors and wheels from the Demag modular system, which can be configured for all load capacity ranges. These combinations result in solutions to meet specific application requirements for safe crane and machinery travel motions that are kind to the rails.

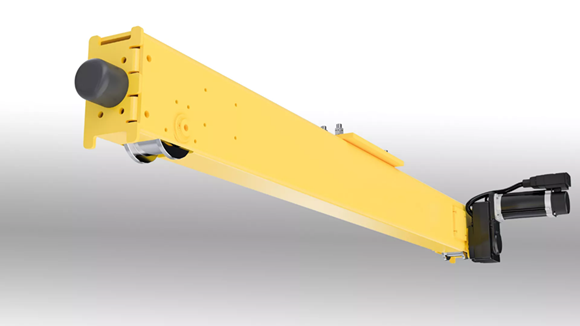

DFO/DFM END CARRIAGES
Our end carriages are compact, rail-mounted travel units for direct connection to crane girders and other load-bearing structures. The end carriages consist of a torsion ally rigid box section, our wheel blocks, and one of our geared motors. They offer excellent travel characteristics – also for high loads
Minimum force transmitted to the crane runway and building structure by travel units that are specially designed for crane applications:
- Travel units with precisely manufactured wheels made of wear-resistant material provide for smooth running characteristics
- Variable-speed inverter-fed drives for precise positioning and gentle loads on the entire design
- Low maintenance costs: the travel units are rated for the entire crane service life
- DFO crane end carriage with top-mounted arrangementof the crane girder and conventional bolted connection
- Flanged travel wheels made of GJS 700-2 to EN 1563
- DFM crane end carriage for side connection
- Travel units equipped with perfectly matching components: geared motor and wheel
- Travel wheel diameters in 8 sizes from 90 – 400 mm
- Choice of travel wheel treads
- Torsion ally rigid travel units optimized for crane applications:
- profile-section design up to size 250
- welded box-section design with diaphragm plates from size 320
- Crane end carriage wheel base for very compact crane approach dimensions: 1,300, 1,600, 2,000 up to 5,500 mm
- Additional safety thanks to derailment guard fitted as standard
- Tandem travel units for double-
- girder overhead traveling cranes with higher load capacities and larger spans
- High-performance long-travel motors with protection against overheating as standard and with 3 gearbox sizes
- Integrated plug-and-socket connections
- Space-saving drive design with offset gearbox
- Tried-and-tested, comprehensive range of wheel accessories: e.g. buffers, horizontal guide rollers, track sweeps, lift-off protection.
