Demag rope hoists feature high handling rates, cost-effective operation and maximum safety. As basic hoist units for integration into plant and machinery or as lifting solutions with electronic controls that are optimized for crane applications, with our wide range of rope hoists we offer the optimum solution to meet our customers’ specific requirements for efficiently lifting loads weighing up to 100 tons.

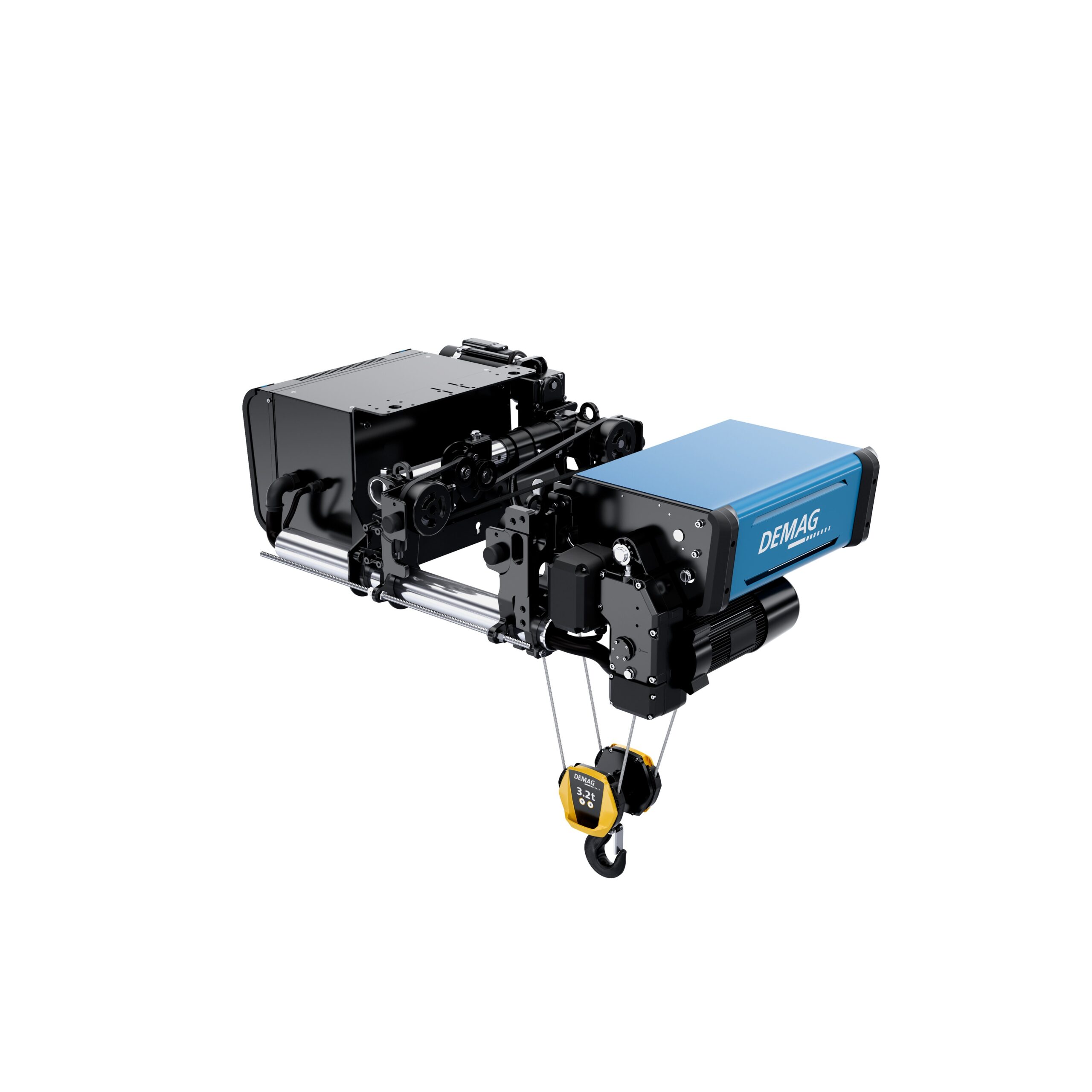

1. DHR ROPE HOIST
Innovative lifting solutions for safe and forward-looking operation: The new DHR rope hoist offers a high level of versatility and productivity. The DHR combines the powerful features of its two predecessor generations: Reliability, productivity and – thanks to numerous options – tailored implementation to meet the requirements of many industries. From simple lifting applications to high-performance rope hoists with smart assistance and convenience features, the DHR meets all demands for highly efficient load handling.
DHR rope hoists fulfil almost any requirement:
- EK-DHR: monorail hoist, optimised for use on single-girder cranes or monorails
- G-DHR: basic hoist for plant engineering
With the DHR rope hoist, you have the choice for the first time: Proven lifting technology with steel ropes or with innovative synthetic ropes.
Features of the synthetic rope:
- Made of high-modulus polyethylene fibres
- 12-strand non-rotating structure
- Around 85% lighter than steel rope
- Suitable for indoor and outdoor use
- Temperature range: -10°C – +45°C
- No lubrication required
- No wear on rope drum and return sheaves
- One type of rope for all applications

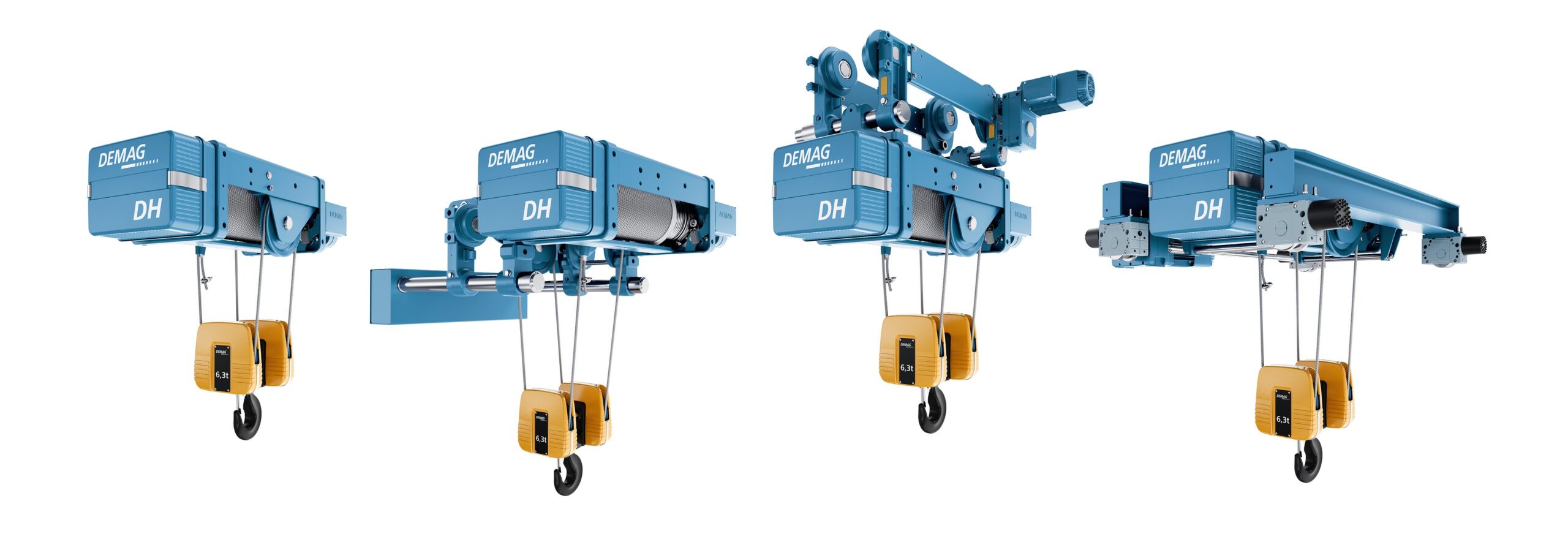

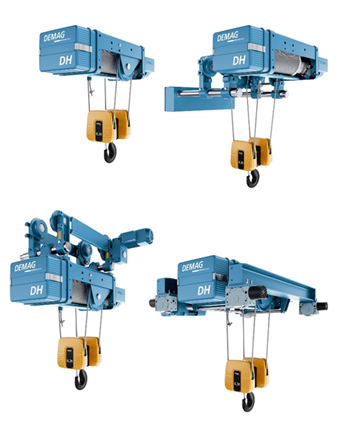

2. DH ROPE HOIST
Demag DH hoist units can be used in a wide variety of applications, both as travelling hoists on cranes or monorails and as stationary solutions. These powerful hoist units offer a number of special technical features that enable loads to be handled reliably even under demanding requirements. More than lifting: Installed as stationary or travelling units, they are more than just hoists – thanks to gentle handling with high load capacities up to 100 tons and flexible integration into almost any design.
- Rugged design – proven worldwide
- Easy integration into any design
- High switching frequencies and high duty cycles
- Precise positioning with mechanical micro speed or frequency-controlled lifting
- Load capacity up to 100 t
- Hook path up to 104 m
